2nd Gen Industrial Android All in One Panel PC Capacitive Touch 12 Inch CPU A64 RK3568 RK3399 RK3588 processor
Top MicroTech 12 inch industrial tablet PC with Android system, features a modern 10-point, capacitive multi-touch screen. These industrial all-in-one PCs combine with rugged industrial-grade components to help create an efficient computing solution.
- Overview
- Parameters
- Recommended Products
Industrial Android All in One Panel PC Easy Touch 12" 1024*768(4:3)
Model: YKR120-A2
TOP MicroTech industrial tablet PC designed to operate under harsh industrial environments. IP65 rated waterproof and dust-proof for the front panel. They are designed to withstand vibration and shock. Safe during shipment. Support fanless cooling system, without noise during running. Easy to install and maintain for users. Offer multi-point capacitive touch and non-touch, also support non-touch for the panel PC according to different applications.
Product Features:
• The industrial Android panel PC is designed with a seamless full-flat front panel, easy to maintain, suitable for embedded installation.
• IP65 rated dustproof and water-proof, effectively withstanding the infiltration of dust and water vapor.
• Aluminum alloy shell with high hardness, 7 Moh's level industrial screen.
• Shock-proof, high and low-temperature resistance, working temperature range up to - 20 ~ 70°C.
• The rear cover of the panel PC is designed with a circular arc structure, high heat-dissipation performance.
• Anti-EMI: it meets EMI/EMC standards, performs perfectly in harsh conditions.
• Reserved dustproof&waterproof horn hole: the horn adapts to the technology of industrial sound transmission material, supports dust/waterproof.
• External key adjustment function: built-in button for adjustment of screen brightness, it reduced complex and tedious operation.
• Offer rich I/O ports: RJ45, HDMI, DVI, VGA, and special anti-drop DC.
• The Android all-in-one PC support multi-type of installation methods for different applications.
| Display Parameters | Size | 12" | ||||||
| Resolution | 1024x768 | |||||||
| Screen Ratio | 4:3 | |||||||

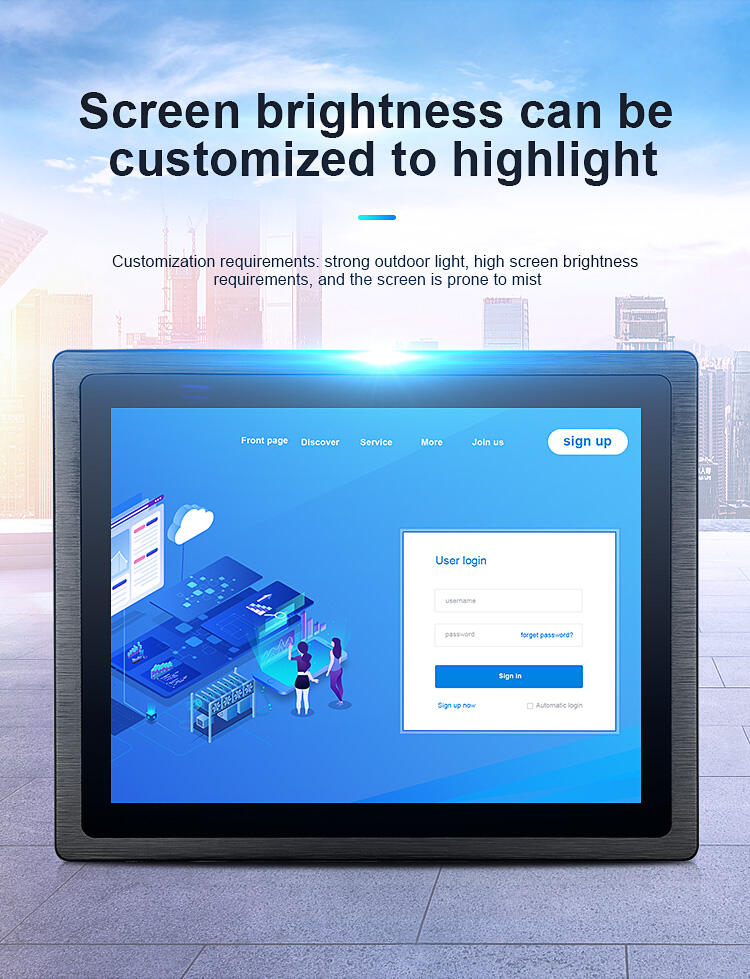

| Brightness | 500 nits (Optional high brightness) | |||||||
| Contrast Ratio | 1000:1 | |||||||
| Viewing Angle | 89/89/89/89 (L/R/U/D) | |||||||
| Backlight type | LED backlight screen, service life ≥ 50000H | |||||||
| Touch Screen | Capacitive, Resistive, or Non-touch options | |||||||
| Motherboard Model Selection | A64 |
RK3288-I | RK3399-MAIN-L | RK3399-A | RK3568-A | RK3588-A | RK-3588-G | |
| System Architecture | CPU | A64 Quad-Core 1.5GHz | RK3288 Quad-Core 1.8GHz | RK3399 Six-Core 2.0GHz | RK3399 Six-Core 2.0GHz | RK3568 Quad-Core 2.0GHz | RK3588 Octa-Core 2.1GHz | RK3588 Octa-Core 2.1GHz |
| Core Architecture | Cortex-A53 | Cortex-A17 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | |
| GPU | Mali-T764 | Mali-T764 | Mali-T860 MP4 | Mali-T860 MP4 | Mali-G52 2EE | Mali G610 MP4 | Mali G610 MP4 | |
| Memory (DDR) | 2GB (8GB optional) | 2GB (4GB optional) | 4GB | 2/4GB | 2GB (4/8GB optional) | 4GB (8/32GB optional) | 8GB (16/32GB optional) | |
| Storage (eMMC) | 16GB (32/64GB optional) | 16GB (32/64/128/256GB optional) | 32GB (64GB optional) | 32/64GB (256GB optional) | 32GB (64/128/256GB optional) | 64GB (128/256GB optional) | 64GB (128/256GB optional) | |
| SATA | / | / | / | / | Support | / | 1*SATA hard drive port | |
| Operating System | Android 6.0 | Android 7.1 / 10.0 / Linux4.4 / Ubuntu18.04 / Debian10.0 |
Android 7.1 / 9.0 / 11 / Ubuntu18.04 / Debian10.0 / Linux4.4 |
Android 7.1/9.0/11, Linux 4.4 / Ubuntu 18.04 / Debian 10 |
Android 12 / Linux5.10 / Ubuntu 20.04 / Debian 11 | Android 13.0 | Android 12 / Linux 5.10 / Debian11 / Ubuntu 20.04 | |
| Networking | Ethernet | 1*10M/100M/1000M adaptive Ethernet |
1*10M/100M/1000M adaptive Ethernet |
1*10M/100M/1000M adaptive Ethernet |
1*10M/100M/1000M adaptive Ethernet |
1*10M/100M/1000M adaptive Ethernet | 1*Gigabit Ethernet + 1*100 Mbit Ethernet | 2*10M/100M/1000M adaptive Ethernet |
| 4G | Optional. Based on the 4G module selection | |||||||
| 5G |
/ |
/ | / | / | / | / | Support M.2 5G module interface | |
| WIFI | 2.4G | Dual-band 2.4/5G | Dual-band 2.4/5G | Dual-band 2.4/5G | WIFI6, 2.4G | WIFI6, Dual-band 2.4/5G | WIFI5/WIFI6 (optional), dual-band 2.4/5G | |
| Bluetooth | BT5.0 | BT5.0 | BT5.0 | BT5.0 | BT5.2 | BT5.0 | BT4.2 (WIFI 5) / BT5.0 (WIFI 6) | |
| Display Function | LVDS | Support 1920*1080 60Hz output | ||||||
| EDP | / | 1920*1080 60Hz output | 4K 3840*2160 output | |||||
| MIPI | Support 1920*1080 60Hz output | |||||||
| Mipi Camera | 30pin FPC interface, support 1300W Camera | |||||||
| HDMI Output | HDMI 2.0, support 4K 3840*2160 60Hz output | HDMI 2.1, support 8K 7680*4320 60Hz output | ||||||
| HDMI Input | / | HDMI Input, 24-pin FPC custom interface | / | HDMI Input, 24-pin FPC custom interface | / | / | HDMI 2.0, support 4K 3840*2160 60Hz input | |
| Touch Function | Touch Interface | USB/IIC | USB | USB/IIC | ||||
| I/O Ports | MICRO USB | 1*MICRO USB (OTG) | / | / | / | / | / | |
| USB 2.0 | USB2.0*2 + USB2.0*4 on board | USB2.0*2 (including OTG*1) + USB2.0*6 on board | USB2.0*5 on board | USB2.0*1 + USB2.0*5 on board | USB2.0*4 on board | USB2.0*1 + USB2.0*4 on board | USB2.0*5 on board | |
| USB 3.0 | / | / | USB3.0*2 (including OTG*1) | USB3.0*1（OTG) | USB3.0*2 (including OTG*1) | USB3.0*1（OTG) | USB3.0*4 (including OTG*1) | |
| RS232 | 3*RS232/TTL mutual conversion | 1*RS232, 2*TTL/RS232 optional | RS232*2 | RS232*2 | RS232*2 | RS232*2 | RS232*1; RS232/TTL*2 (optional) | |
| RS485 | / (Unless install RS232 to RS485 converter) | RS485*1 | RS485*1 | RS485*1 | RS485*1 | RS485*1 | ||
| TTL | 3*RS232/TTL mutual conversion | 1*RS232, 2*TTL/RS232 optional | TTL*2 | TTL*2 | TTL*2 | TTL*2 | TTL*1; RS232/TTL*2 (optional) | |
| GPIO | 3*GPIO output, 1*GPIO input, and 1*ADC port | GPIO*7 (input/output) | GPIO*8 (input/output) | GPIO*8 (input/output) | GPIO*12 (input/output) | GPIO*6 (input/output) | ||
| SIM Slot | Support | Support | Support | Support | Support | Support | ||
| TF Slot | Support | Support | Support | Support | Support | Support | ||
| CAN | / | / | / | / | Support | Support | ||
| Speaker | 3.5mm standard Jack | |||||||
| MIC | Support | Support | Support | Support | Support | Support | ||
| Audio Port | 3.5mm earphone jack, support input/output | |||||||
| I/O Expansion | Available | |||||||
| Power | Power Input | 12V DC | 12V DC | 12-36V DC | 12-36V DC | 12-36V DC | 12-36V DC | 12-36V DC |
| Adapter | 12V / 4A | 12V / 4A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | |
| Mechanical | Dimension | 319*257*56.5mm | ||||||
| Enclosure | Aluminum alloy housing | |||||||
| Cooling System | Fanless | |||||||

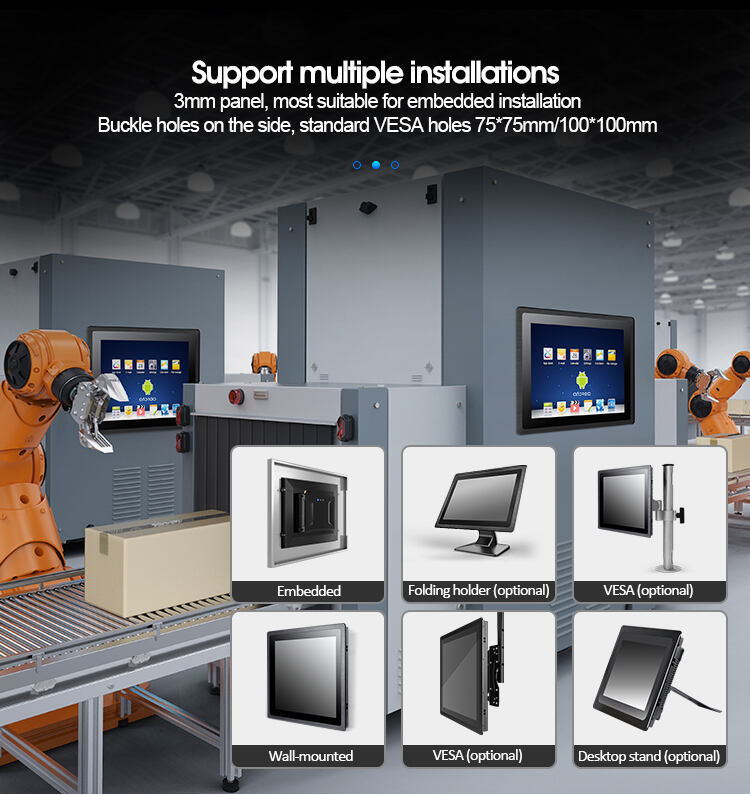

| Mounting | Panel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc. |
|||||||
|
Product Reliability |
Working Temp | -20°C ~ 70°C | ||||||
| Storage Temp | -30°C ~ 80°C | |||||||
| Ambient Humidity | 5% - 95% (relative humidity non-condensing) | |||||||
| IP rating | Front IP65 | |||||||
