15.6 inch 2nd Gen industrial touchscreen monitor
Top MicroTech industrial touch screen displays built for heavy-duty industrial environments or outdoor commercial applications, provide OEM / ODM customization services that match your touch control & display solution requirements.
- Overview
- Parameters
- Recommended Products
Top MicroTech 10.1”~23.8” 2nd Gen Industrial Touch Screen Monitors

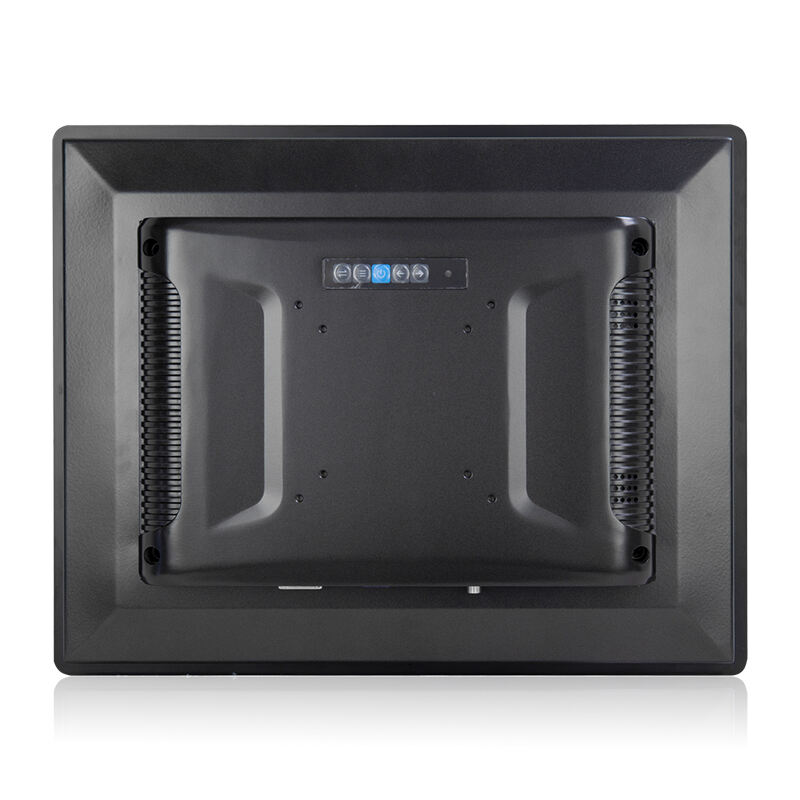

15.6"Industrial Touch Screen Monitor With Metal Case
Model: YKE156-M210
TOP MicroTech sunlight readable LCD industrial monitor displays offer high-performance capacitive, resistive, and non-touchscreen in industrial-grade LCD flat panels, with a 3mm thin flat surface industrial design, it is well-embedded into other cabinets. The touch screen LCD monitor is designed for indoor and outdoor applications, such as kiosks, self-service devices, digital signage applications. The aluminum alloy closed enclosure, higher heat-dissipation than iron materials. IP65 rated dustproof and waterproof for the front panel. The standard color is black, silver, We support appearance customization for monitors, even for one unit.
Product Features:
● 15.6" industrial-grade TFT Active Matrix LCD Panel
● 1920 x 1080 Full HD resolution
● 300 nits Brightness
● Long span life LED backlight
● Wide viewing angle 85°/85°/85°/85° (L/R/U/D)
● VGA, DVI, HDMI, USB Type-C, Composite, DisplayPort input options
● Optional built-in speakers
● 12-36V low voltage DC input power options
● Rugged Aluminum alloy rounded corner enclosure
● Auto Power-on
● Long shelf life
● Wide Operational Temperature: -10 °C to 60 °C
● Resistive. Capacitive, Projected Capacitive, Non-touch options
● Compliant with RoHS, UL, CE, FCC, IP65
● Customizable to meet your needs
This WELLS group ultra-slim industrial touch screen monitor with IP65 rated dust-proof and waterproof for the front panel and adopts a capacitive or resistive touch screen technology, also supports mouse control (Non-touch screen). It can be used in indoor/outdoor applications. Offers flexible multi-signal inputs including VGA, DVI-D, HDMI, etc.
WELLS 2nd Gen Industrial Touch Screen Monitor Features:
• Aluminum alloy housing, antioxidant, good heating- dissipation.
• 3mm thin front bezel design monitors, suitable for embedding into the cabinet in various applications.
• Adopts industrial A+ quality screen, long service life for LED backlight LCD screen,
• Triple protection from flame-proof, explosion-proof, and dust-proof for the whole monitor.
• Adopt industrial-grade inner components to ensure 24*7 long-term running without interruption.
• Sunlight-readable screens for kinds of outdoor devices, i.e., self-service equipment, express cabinet, ATM, etc.
• Compliance with EMI / EMC anti-interference standards.
• OEM/ODM customization services for I/O interfaces.
• 12-36V wide voltage power supply operation.
• Wide working temperature: -10°C ~ 60°C for harsh conditions.
• Multi installation methods:Buckle clip embedded, wall mounted,VESA mount,Desktop mounting, louver bracket, suspend-arm type
• Available size: 10.1" / 10.4" / 11.6" / 12" / 12.1"/13.3"/ 15" / 15.6" / 17" / 17.3"/18.5"/19" /19.1" / 21.5"/23.8"
| parameters | Screen size | 15.6 inch |
| Model | TPC156-M2 | |
| Resolution | 1920*1080 | |
| Proportion | 16:9 widescreen | |
| Gray-scale response time | 5ms | |
| Panel Type Industrial | Control A style TFT | |
| Point distance |
0.264mm |
|
| Contrast | 800:1 | |
| Backlight type | LED, use length≥50000h | |
| Display color |
16.7M |
|
| Visual angle | 160/160 (Customizable 178° full view angle) | |
| Brightness | 400cd/m2 (customizable high brightness) | |
| Touch-type | Resistive / capacitive / mouse control | |
| Number of touches | ≥ 50 million times | |
| Other parameters | Power Supply | 4A External Power Adapter |
| Power Performance | 100-240V, 50-60HZ | |
| Input voltage | 12-24V | |
| Anti-static | Contact 4KV-air 8KV (Above 16KV can be customized ) | |
| Power | ≤48W | |
| Anti-vibration | GB2423 standard | |
| Anti-interference | EMC | EMI anti-electromagnetic interference | |
| Dustproof and waterproof | front panel IP65 dustproof and waterproof | |
| Housing Material | Black/Silver, Aluminum Alloy | |
| Installation method | Embedded, desktop, wall-mounted, panel mount, VESA 75/100 | |
| Ambient temperature | <80%, non-condensable | |
| Working temperature | -10°C～60°C (customizable -30°C～80°C) | |
| Language menu | Chinese, English, German, French, Korean, Spanish, Italian, Russian | |
| O/I interface parameters | Signal Interface | DVI, HDMI, VGA |
| Power connector | DC with ring attachment (optional DC terminal block) | |
| Touch interface | USB | |
| Other interfaces | Audio input and output |
